Product Description

SISTO-20 5.3103-PTFE ENPN16 DN25 MD65 TFM/EPDM

Part Number

42452701

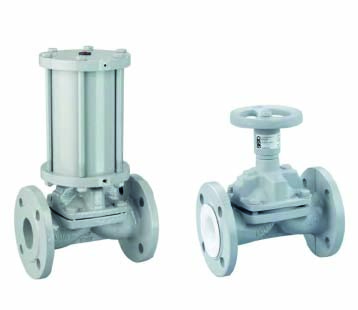

Product image
Contact SISTO
AASX AASX Asset Administration Shell Package

Nameplate

6 properties · 3 sections
Manufacturer name
SISTO Armaturen S.A.
Manufacturer product designation
Membrane valve, handoperated
Type series
SISTO-20
Order code
20S3025MD65F148M90L00
Article number
42452701
Country of origin
LU
Nominal diameter
DN25
Nominal pressure
PN16
Min. permissible temperature
-20
Max. permissible temperature
160
Diaphragm material
TFM/EPDM
Housing material
5.3103-PTFE
Made in Luxembourg CE
National code
LU
City/town
Echternach
Street
18, rue Martin Maas
Zipcode
6468
ID Link
https://id.sisto.one/?.1P=42452701

Handover Documentation

6 sections
Fiche technique de la série - FR
Download
Document Identifyer
8643.1
Language
FR
Document version
2
Document title
Fiche technique de la série - FR
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.
Series Manual - EN
Download
Document Identifyer
8643.1
Language
EN
Document version
2
Document title
Series Manual - EN
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.
Baureihenheft - DE
Download
Document Identifyer
8643.1
Language
DE
Document version
2
Document title
Baureihenheft - DE
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.
Mode d'emploi - FR
Download
Document Identifyer
0570.821
Language
FR
Document version
2
Document title
Mode d'emploi - FR
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.
Manual - EN
Download
Document Identifyer
0570.821
Language
EN
Document version
2
Document title
Manual - EN
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.
Betriebsanleitung - DE
Download
Document Identifyer
0570.821
Language
DE
Document version
2
Document title
Betriebsanleitung - DE
Document description
Test
Document status set date
2008-01-29
Organization official name
SISTO Armaturen S.A.

Technical Data

3 sections
Product image
Type series
20 Diaphragm SISTO-20
Body material
S3 Nodular Cast Iron 5.3103 lining PTFE
Nominal size DN1
025 DN25 - 1"
Diaphragm diameter
MD65 Diaphragm Diameter 65
Connection
F1 Flange EN1092 PN16 Form B
Diaphragm material
48 Diaphragm TFM/EPDM 2-piece
Bonnet
M90 Manually operated | Cast Iron
Coating
L00 Standard paint finish
Manufacturer name
SISTO Armaturen S.A.
Manufacturer product designation
Membrane valve, handoperated
Article number
42452701
Order code
20S3025MD65F148M90L00
Product description long
SISTO-20
